Testing Lab of Power Supply/ IT / AV Products

Key takeaway: Power supplies exported to the EU must comply with the CE EMC Directive (2014/30/EU), proving that the equipment can operate in its electromagnetic environment without causing intolerable interference. The standard process involves: “identify applicable standards → prepare technical documentation → choose conformity route → lab testing → sign DoC → affix CE mark”. Typical timeline is 6 to 10 weeks, with main drivers being design margin and pre‑compliance testing results.

Based on extensive hands‑on experience with power supply projects (switching power supplies, adapters, chargers, inverters), this guide covers step‑by‑step procedures, test requirements, typical failure fixes, and timeline optimization strategies.

1. What is CE EMC for Power Supplies? Which Products Must Comply?

CE EMC certification demonstrates conformity with the Electromagnetic Compatibility Directive (EMC Directive 2014/30/EU). All electrical and electronic equipment placed on the EU market – including power supplies – must meet the EMC Directive requirements; otherwise, they cannot bear the CE mark, pass customs, or be sold on e‑commerce platforms.

Typical products: Switching power supplies, AC/DC adapters, battery chargers, LED drivers, UPS units, inverters, DC‑DC converters, industrial power modules. Any product containing electronic switching circuits that could generate electromagnetic disturbances must comply with the EMC Directive.

2. Applicable Standards and Key EMC Test Items

Power supplies are tested against the following harmonized standards:

• Emissions: EN 55032 (or CISPR 32) for conducted and radiated emissions.
• Immunity: EN 55035 covering ESD, radiated immunity, EFT, surge, conducted immunity, voltage dips/interruptions.
• Harmonics & flicker: EN 61000-3-2 (harmonic current), EN 61000-3-3 (voltage fluctuations).

Most common failure points for power supplies (limits per EN 55032 Class B):

3. Standard CE EMC Certification Process (Step‑by‑Step)

Manufacturers may self‑declare (DoC) or involve a Notified Body (NB). Most power supplies use the “internal production control + third‑party test report” route. The steps are:

1. 1 Identify applicable standards – choose the correct harmonized standards based on product type (AC‑DC, DC‑DC, industrial/medical/ITE).
2. 2 Prepare technical documentation – product description, schematics, PCB layout, critical components list, risk assessment, test plan.
3. 3 Submit samples to an accredited lab – provide 2‑3 engineering prototypes for full EMC testing (emissions + immunity).
4. 4 Remediate if failures occur – analyze critical frequencies, modify circuit or mechanics, retest until all criteria are met.
5. 5 Receive test report and sign DoC – lab issues the test report; manufacturer signs the EU Declaration of Conformity.
6. 6 Affix CE mark and retain technical file – mark height ≥5mm; keep technical documentation for at least 10 years.

The overall timeline is typically 6–10 weeks (testing 2‑3 weeks; remediation may add 2‑5 weeks). Anci Testing provides pre‑compliance and troubleshooting services for power supplies, helping eliminate 80% of common issues before formal testing.

4. Technical Documentation Requirements & Timeline Drivers

Per Annex II of the Directive, the technical file must include:

•  General description of the apparatus and its intended use
•  Conceptual design, manufacturing drawings, schematics of components/sub‑assemblies/circuits
•  Descriptions and specifications needed to understand the drawings and operation
•  Results of the tests performed (EMC test report)
•  Risk assessment analysis (how basic requirements are met)

Key factors affecting certification timeline:

• Design maturity: First‑prototype units often have multiple EMI violations; pre‑optimized designs achieve >70% first‑pass success.
• Power rating: High‑power supplies (>500W) have more difficult harmonics and conducted emissions, potentially adding 3‑5 weeks to remediation.
• Lab scheduling and location: Domestic CBTL labs typically schedule within 2 weeks; EU local labs have longer queues.

5. Frequently Asked Questions (FAQs)

6. How to Choose a Reliable CE EMC Certification Partner

Avoid claims like “guaranteed pass” or “skip pre‑testing”. A legitimate lab will not promise results but will offer professional pre‑compliance and remediation support. Look for these capabilities:

• ① CNAS/CMA accreditation and (if needed) EU Notified Body status.
• ② Dedicated power‑supply troubleshooting engineers with near‑field probes and spectrum analyzers.
• ③ Traceable success cases – sample remediation reports for similar power supply topologies.

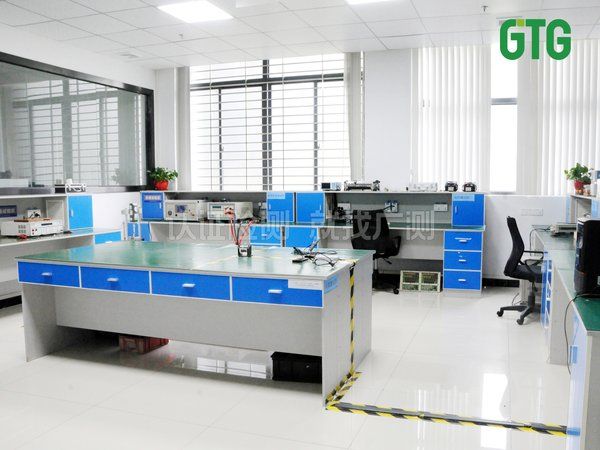

Anci Testing specializes in EMC services for power supplies and electronic components, with 10m and 3m anechoic chambers. We have assisted over 300 power supply manufacturers with one‑stop CE EMC solutions. Schedule a technical consultation with Anci to get a tailored test plan and cost estimation.

This content is AI‑assisted and for general informational purposes only. It does not constitute certification commitment or legal advice. Always refer to official regulations.
